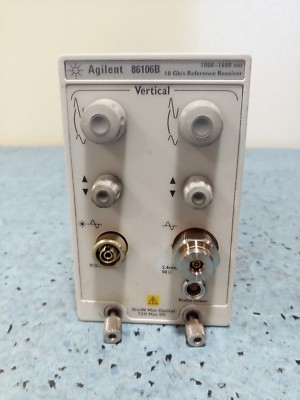

Agilent / Keysight 86106B 1000-1600nm 10Gb/s Reference receiver Optical/Elect.

86106B 28 GHz optical / 40 GHz electrical module, 1000-1600 nm

Key Features & Specifications:

25 GHz optical channel for 9/125 fibers

• Wavelength range: 1000-1600 nm
• Characteristic rms noise: 10 uW (22 GHz BW), 18 uW (28 GHz BW)
• Maximum average input power: 2 mW
• Reference receiver capability (9.953)

40 GHz electrical channel with 2.4 mm male input

• Characteristic rms noise: 0.25 mV (18 GHz BW), 0.5 mV (40 GHz BW)
• Maximum input signal: +/- 2 Vdc

Description

The Keysight 86106B has an integrated, calibrated optical channel with a built-in OC-192/STM-64 filter that can be switched in for a standards-base transmitter compliance test. When the filter is switched out, the 86106B offers 28 GHz of unfiltered optical bandwidth for accurate characterization of high-speed lasers. The frequency-response variation of the unfiltered optical channel also has been improved to minimize the distortion on measured optical pulses. A 40 GHz electrical channel is available for wide-bandwidth measurements on electrical waveforms.
