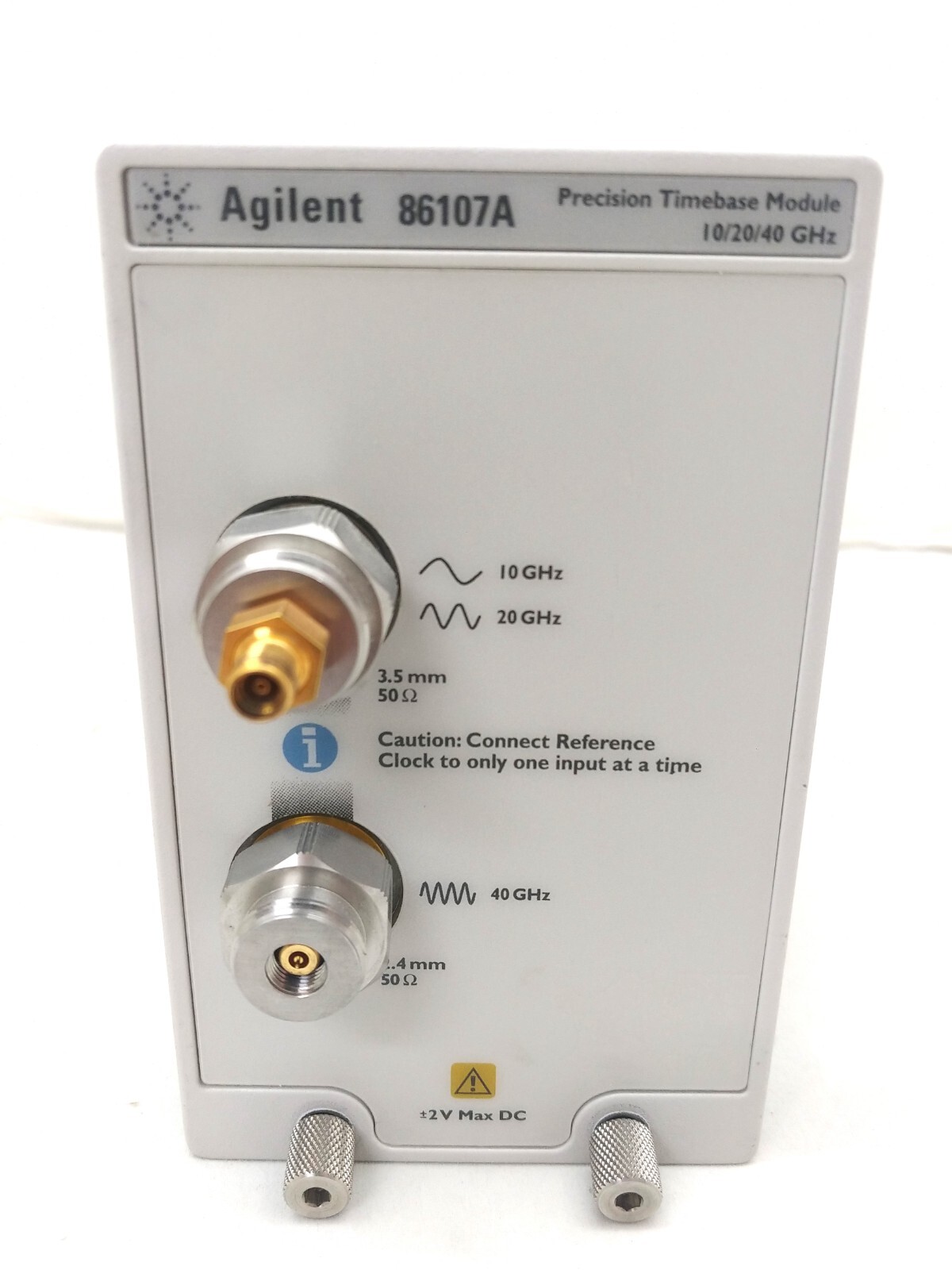

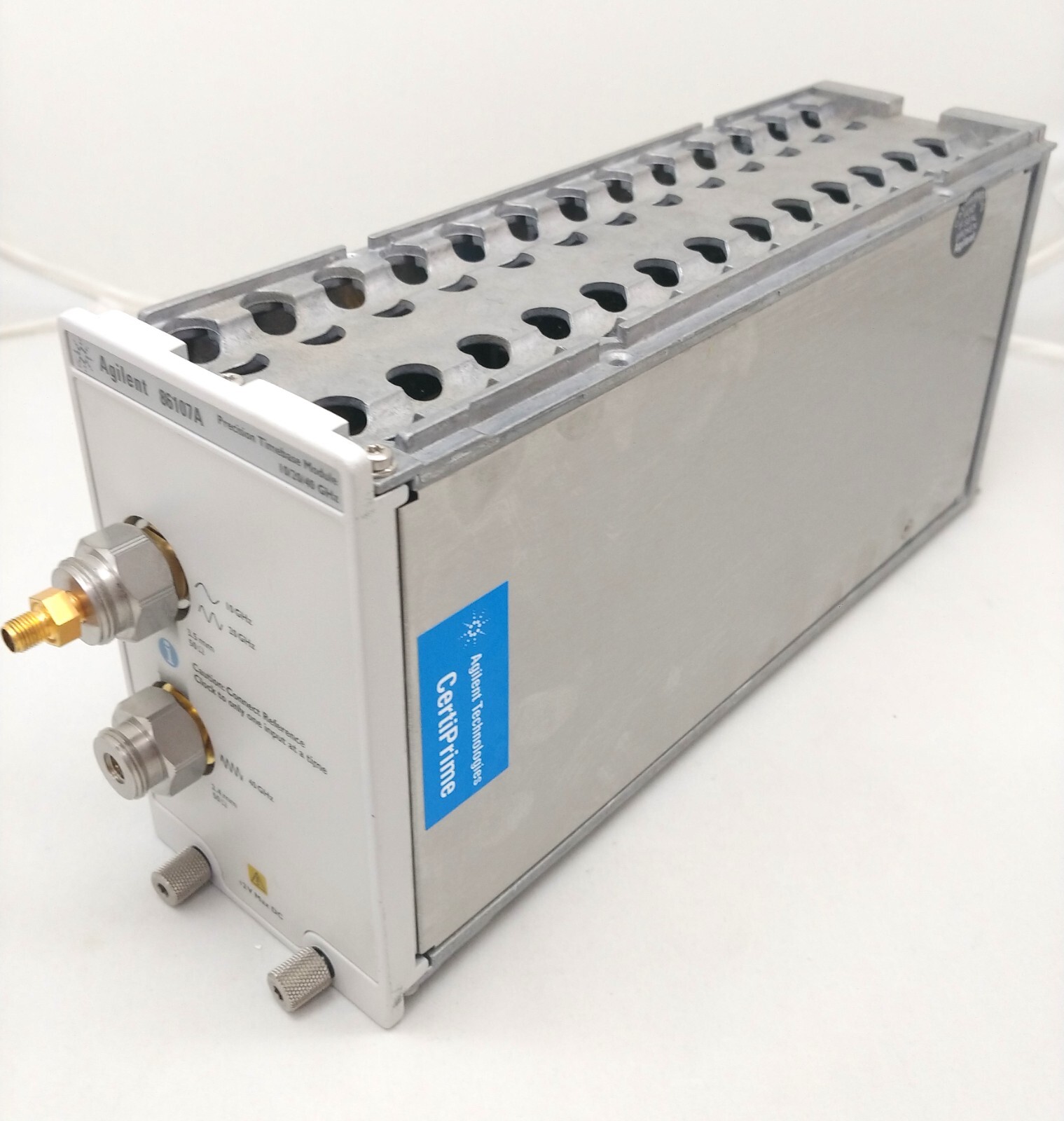

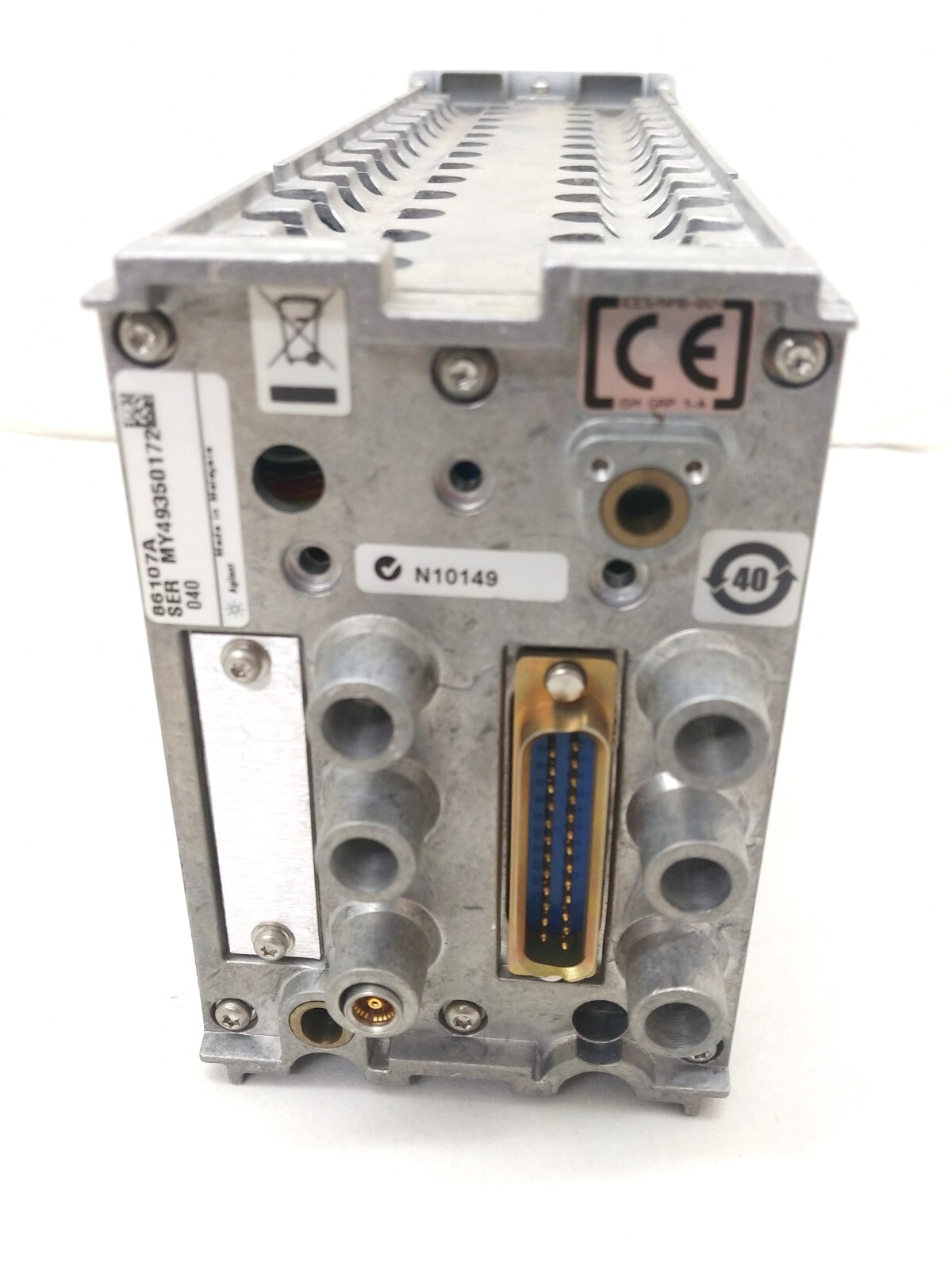

Agilent Keysight 86107A OPT 40 Precision Timebase Reference Module 10/20/40GHz –

Agilent Keysight 86107A-040 Precision Timebase Reference Module 10/20/40GHz

The 86107A represents one of the most significant improvements in wide-bandwidth sampling oscilloscopes in over a decade. Jitter performance has been reduced by almost an order of magnitude to less than 200 fs RMS. Timebase resolution has also been improved from 10 ps/division to 2 ps/division. Because the 86107A improves timebase jitter and linearity by more than a factor of five it provides extremely accurate views of 40 Gb/s waveforms.

Input signal

·       Type: synchronous clock, square wave to sine wave shape

·       Characteristic levels: 0.2 – 1.5Vpp

·       Trigger range: 2 to 48 GHz (depends on options)

·       Electrical Input: 3.5 mm male (2.4 mm male for frequencies > 25 GHz BW)

Timebase Jitter

·       < 200 fs rms (for frequencies > 4 GHz)

·       < 280 fs rms (for frequencies < 4 GHz)

Options

·       Option 040: 10, 20 and 40 GHz clock input capability

Compatibility

·       86100A/B/C Infiniium DCA/DCA-J Mainframes

Shipping

·       Shipment – 5 business day after receival payment is received

·       Tracking number will be mailed to your e-mail address

·       Self-pick-up welcomed

Payment

·       We accept PayPal and Wire Transfer

·       Israeli buyers – please add 17% VAT

International Buyers – Please Note

·       Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer’s responsibility.

·       Please check with your country’s customs office to determine what these additional costs will be prior to bidding or buying

Questions

·       We are at your service –  skype: peled2005
