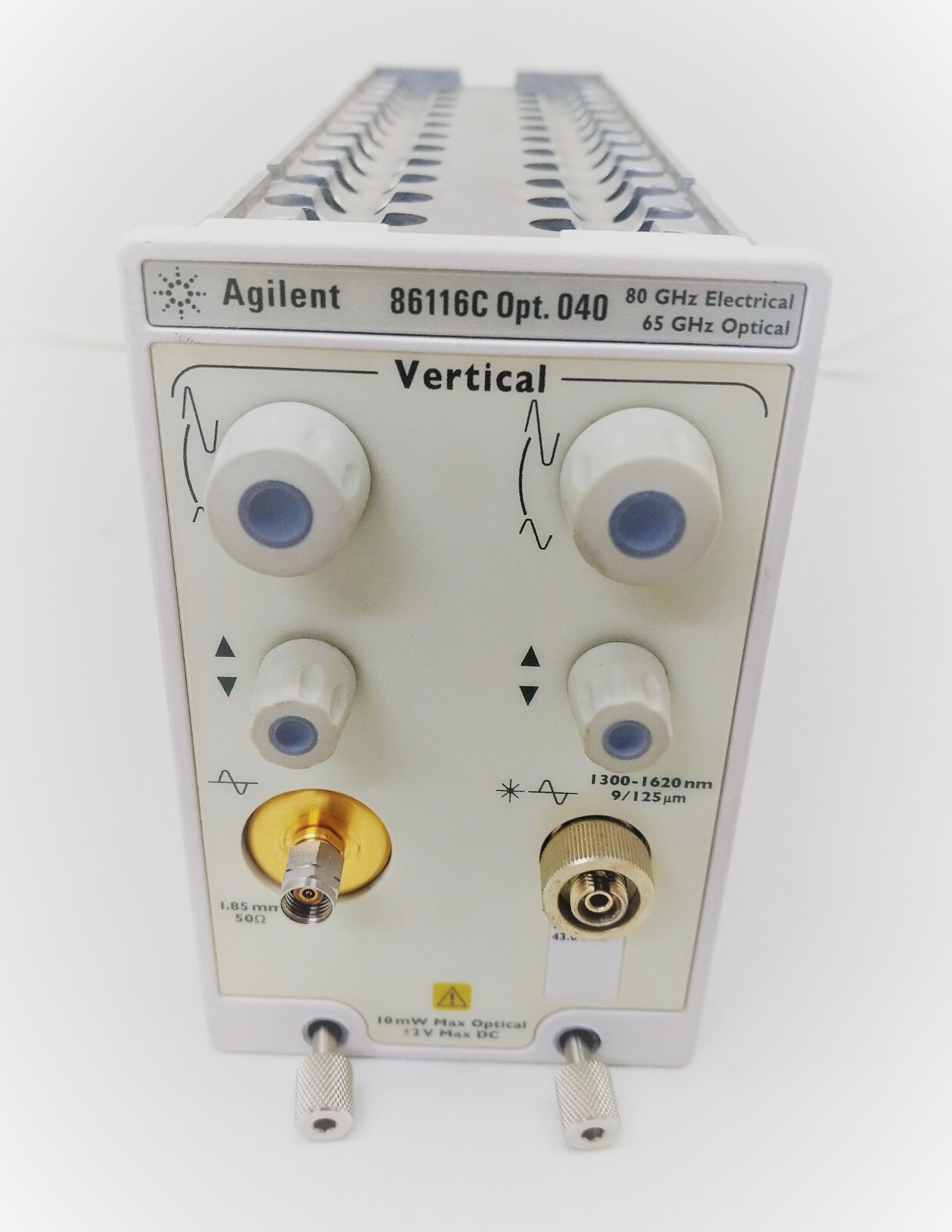

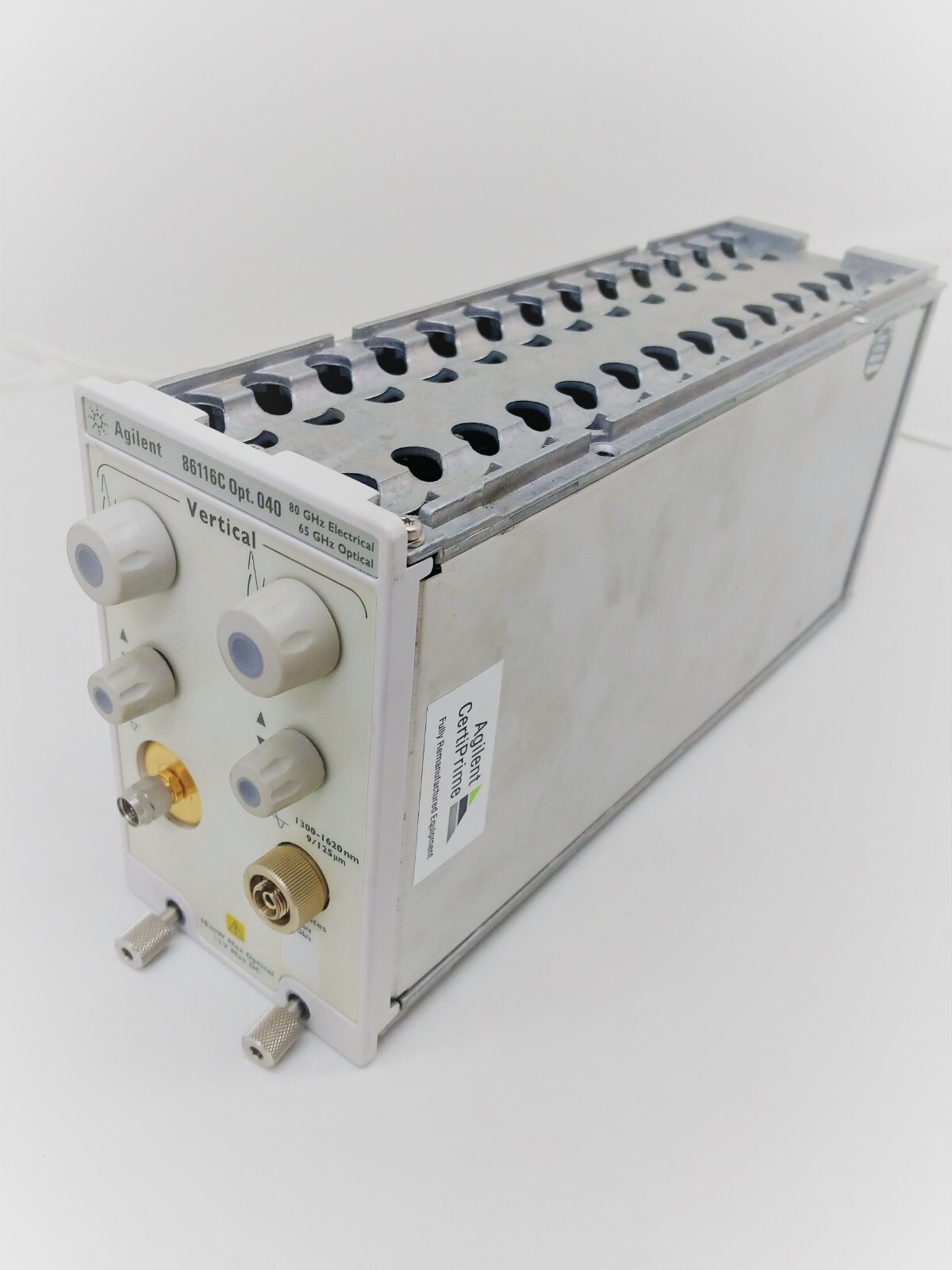

Agilent / Keysight 86116C 65 GHz Optical + 80 GHz Elec. Plugin Module, option 40

Agilent / keysight 86116C 65 GHz Optical and 80 GHz Electrical Plug-in Module with Option 040

Vendor: Agilent / Keysight

Model: 86116C

Description:

Agilent 86116C 65 GHz Optical and 80 GHz Electrical Plug-in Module with Option 040

Accurate analysis of both optical and electrical 40 Gb/s waveforms

The 86116C optical and electrical modules represent some of the fastest solutions available for measuring high-speed communication signals.

·       86116C-040 Optimized for high-speed telecom signals

·       40G SONET/SDH and faster signals

·       70 GHz characteristic optical bandwidth displays up to 107 Gb/s NRZ

·       Reference receiver for 39.8 and 43.0 Gb/s NRZ

·       93 GHz characteristic electrical bandwidth

·       55, 30 GHz settings for best sensitivity (0.6, 0.5 mVRMS characteristic)

·       Compatibility: 86100C Infiniium DCA-J Mainframe

Cutting edge component and subsystem designs require accurate characterization of very high-speed signals. When viewing waveforms in the 10 to 100 Gb/s range, three requirements are critical in an oscilloscope: a well-designed frequency response, a wide bandwidth, and extremely low internal jitter. Characteristically with 45 or 70 GHz optical and 93 GHz electrical bandwidth, the 86116C when paired with the 86107A precision timebase module becomes the ideal solution for ultra high-speed waveform analysis. Designers will see the real performance of their devices and not aberrations created by the test equipment.

The unfiltered bandwidth settings provide the best pulse fidelity mode for measurement and display of very high-speed waveforms and provides a fast full-width, half-max (FWHM) of less than 7.4 ps (86116C-040). User selectable bandwidth settings can reduce noise when observing small signals. The electrical channel features over 93 GHz bandwidth. This yields a 3.9 ps system risetime. Just as important as bandwidth, the channel has a well-controlled frequency response to minimize waveform distortion. User selectable bandwidth settings can be used for reduced instrumentation noise.
