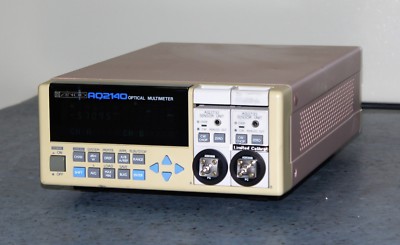

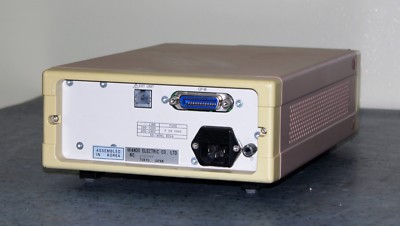

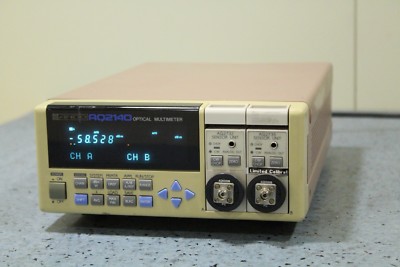

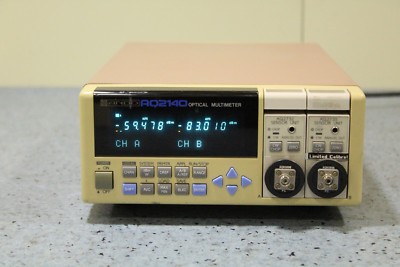

ANDO AQ 2140 Optical Multimeter + 1xAQ2732 (Sensor Unit) + 1xAQ2735 (Sensor)

Description

ANDO /
Yokagawa AQ-2140 Optical Multimeter + 1xAQ2732 (Sensor Unit) + 1xAQ2735 (Sensor
Unit)

AQ-2140
– Description

The

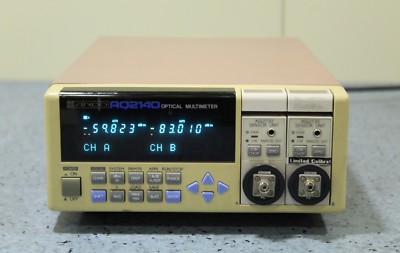

ANDO AQ2140 Optical Multimeter is a modular optical measurement instrument optimal
for a wide range of applications.

This
product supports a variety of modules providing:

·       Optical
power metering

·       Stabilized
light source

·       A
loss test set

·       Return
loss measurement

·       OPM

For

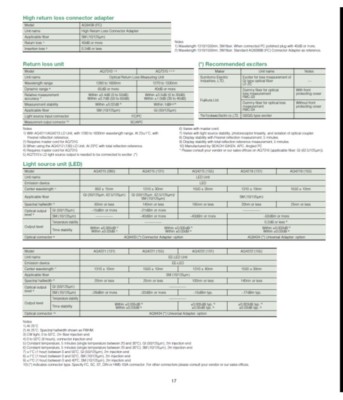

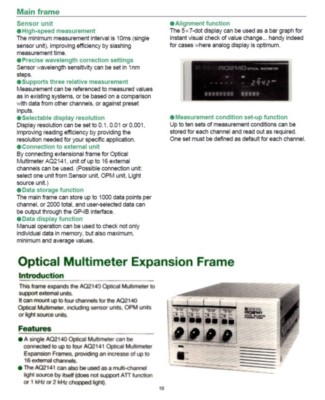

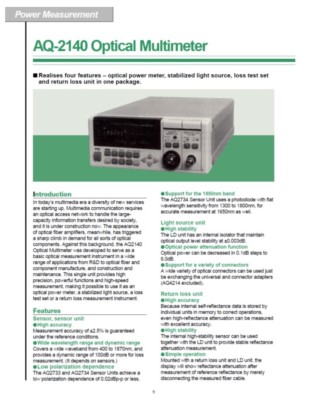

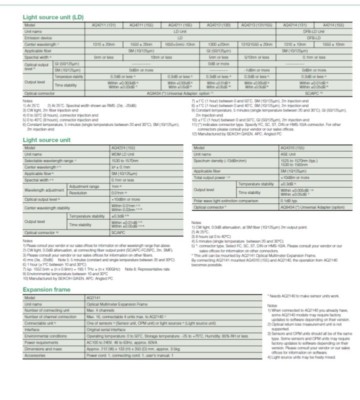

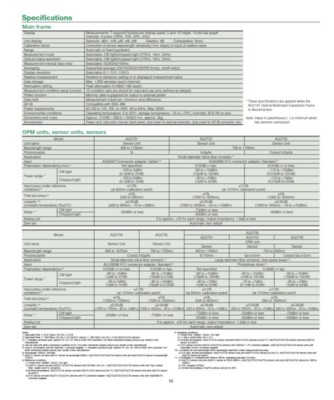

more details please refer to the attached technical specifications/

ANDO AQ-2732 Description

The ANDO AQ2732 optical power meter is a
pluggable module for the ANDO AQ-2140 and for the AQ-2141 extension unit

Specifications

·
Wavelength Range: 700 to 1700 nm

·
Photoreceptor technology: InGaAs

·
Polarization dependency: 0.02dB p-p typ

·
Power Range for CW Light: −80 to +10 dBm

·
Power Range for Chopped Light: −80 to +7 dBm

·
Inaccuracy under reference conditions: ±2.5%

·
Total accuracy: ±5% (1000 to 1650nm)

·
Linearity: ±0.05dB

·
Noise: −73 dBm or less

·
Analog out 0 – +2V, output impedance 1.5KΩ or less

·
Zero set: automatic zero adjust

ANDO AQ2735 Description

The ANDO AQ2735 optical power meter is a
pluggable module for the ANDO AQ-2140 and for the AQ-2141 extension unit

Specifications

·
Wavelength Range: 700 to 1700 nm

·
Photoreceptor technology: cooled InGaAs

·
Polarization dependency: 0.02dB p-p typ

·
Power Range for CW Light: −80 to +27 dBm

·
Power Range for Chopped Light: −80 to +24 dBm

·
Inaccuracy under reference conditions: ±2.5%

·
Total accuracy: ±5% (1000 to 1650nm)

·
Linearity: ±0.05dB

·
Noise: −73 dBm or less

·
Analog out 0 – +2V, output impedance 1.5KΩ or less

·
Zero set: automatic zero adjust
