EXFO IQ 203 sold with IQ-2600BT + IQ-1600 modules

Description

6624A DC Power Supply, Quad-Output, 2 Outputs at 7V/5A, 2 Outp

uts at

20V/2A, GPIB

Key Features & Specifications

Output ratings (2 outputs each)



Low

-range volts, amps: 0 to 7 V, 0 to 5 A; 0 to 20 V, 0

to 2 A



High range volts, amps: 0 to 20 V, 0 to 2 A; 0 to 50

V, 0 to 0.8 A

Programming accuracy at 25°

C

±5°C (2 outputs each)



Voltage: 0.06% + 19 mV; 50 mV



Current: 0.16% + 50 mA; 20 mA

Ripple & noise (20 Hz to 20 MHz) 2 outputs each



Voltage rms: 500 μV



Peak-

to

-peak: 3 mV



Current rms: 1 mA

Description

Keysight high performance DC power supplies offer spec and

accuracy for test optimization. The multiple output,

40W – 105W GPIB 6621A – 6624A and 6627A provide dua

l-range outputs; fast, low-noise outputs; built-in

measurements and advanced programmable features; and p

rotection features to ensure DUT safety.

The Keysight 40W, four-output 6624A is a versatile solu

tion to help improve system accuracy and reduce test time

in

a 3U high package.

uts at 6624A DC Power Supply, Quad-Output, 2 Outputs at 7V/5A, 2 Outp

20V/2A, GPIB

Key Features & Specifications

Output ratings (2 outputs each)



Low

-range volts, amps: 0 to 7 V, 0 to 5 A; 0 to 20 V, 0

to 2 A



High range volts, amps: 0 to 20 V, 0 to 2 A; 0 to 50

V, 0 to 0.8 A

Programming accuracy at 25°

C

±5°C (2 outputs each)



Voltage: 0.06% + 19 mV; 50 mV



Current: 0.16% + 50 mA; 20 mA

Ripple & noise (20 Hz to 20 MHz) 2 outputs each



Voltage rms: 500 μV



Peak-

to

-peak: 3 mV



Current rms: 1 mA

Description

Keysight high performance DC power supplies offer spec and

accuracy for test optimization. The multiple output,

40W – 105W GPIB 6621A – 6624A and 6627A provide dua

l-range outputs; fast, low-noise outputs; built-in

measurements and advanced programmable features; and p

rotection features to ensure DUT safety.

The Keysight 40W, four-output 6624A is a versatile solu

tion to help improve system accuracy and reduce test time

in

a 3U high package.

Vendor:

EXFO

Model:

IQ-203 Chasis sold with IQ-2600BT + IQ-1600 modules

Description:

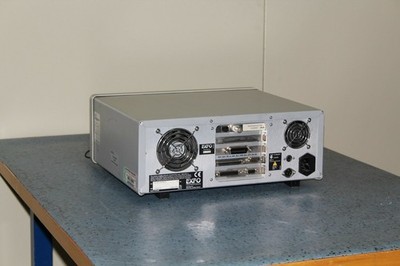

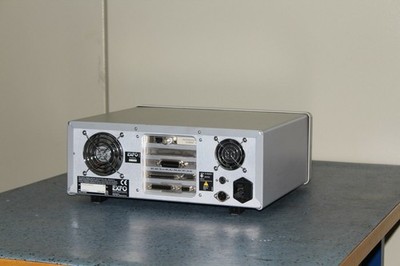

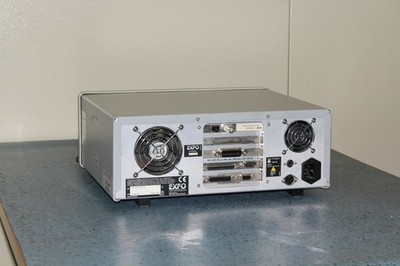

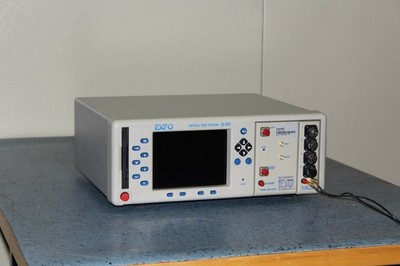

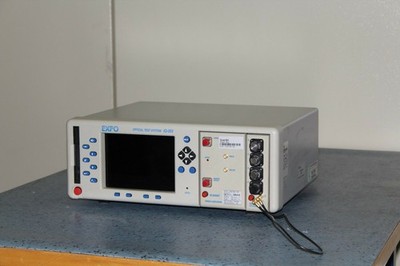

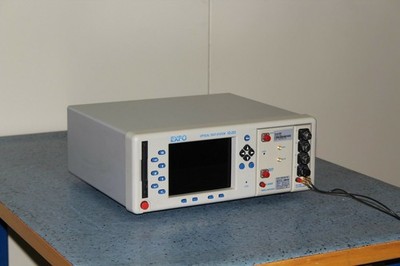

EXFO IQ-203 – Optical Test System Mainframe

Key Features

·
3 slots for modules

·
GPIB, RS-232 & Ethernet

·
Various test modules

EXFO IQ-2600BT – Tunable Laser Module

Key Features

·
Wavelength Range: 1510 to 1612 nm

·
Wavelength Resolution: 0.01 nm

·
Optical Output Level: > -10 dB (1510 to
1612 nm)

·
Fiber Type: 9/125 um SMF

·
Spectral Linewidth: 1.3 GHz

·
Optical Power Stability (1 hour): +/- 0.01
dB

EXFO IQ-1600 –  High-Speed
4 Channel Power Meter Module

Key Features

·
Excellent ± 0.015 dB linearity

·
Less than 12 ms stabilization time over the
entire dynamic range

·
Sampling rate of up to 4 kHz

·
4-channel InGaAs detector

·
Min./Max acquisition function

·
Low PDR and 3 mm detector options available

·
Analog output and external trigger

·
Unique graphical display mode

Will ship Worldwide via courier With on-line tracking !!

Israeli buyers – pls add 17%. Shipping in Israel $50USD.

Self pick up welcomed

Delivery time – 5 working days
