JDSU MTS 6000A Compact Network Test Platform

MTS-6000A Compact Network Test Platform

Compact Modular multifunction fiber and network interface test platform, performs wide range of fiber and network tests including Carrier-Ethernet, OTN & DWDM testing.

Description

MTS-6000A is a compact and lightweight test platform designed for all phases of network lifecycle from the installation to the maintenance of fiber networks. Modular in design, the MTS-6000A offers an extensive portfolio of test functionality for multiple network layers.

A single Multi-Services Application module provides an integrated solution for Ethernet, SONET/SDH, and higher-layer tests. Optical Modules allow thorough testing of short-haul, long-haul, FTTx, CWDM, and high speed 10G/40/100Gbps networks

Highlights

• Offers maximum usability and minimum footprint with over than 100 applications in a compact, lightweight platform

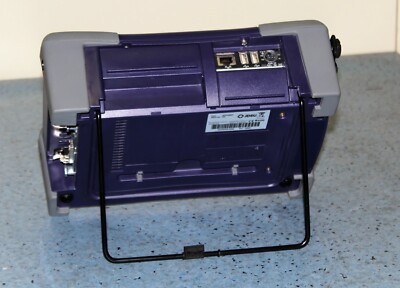

• Ethernet port for network connectivity (cloud, remote control, S/W upgrades etc)
• Compatibility with more than 80 pluggable modules and field upgradable options

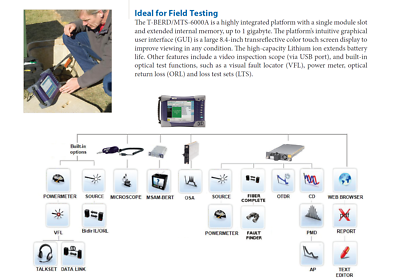

Applications

• OTDR and power level testing.
• Converged Ethernet/IP networks at 10 Mbps to 10G interfaces testing and troubleshooting.
• TDM/PDH to SONET/SDH at OC-3/STM-1 to OC-192/STM-64 testing.
• OTN networks installation and maintenance up to 11.1 G interfaces with ODU-0/ODUFlex support for Ethernet/IP client interfaces.
• Dual FC (1, 2, 4, 8, 10 G) testing for service activation and maintenance of SANs and low-latency circuits
• PMD, Spectral Attenuation Profile and Chromatic Dispersion (CD) testing.
• Optical Spectrum Analyzer

Key Features

• Lightweight platform: only 2.4kg/5.3 lbs.
• Large 8 inch transreflective TFT color display improves viewing under any conditions.
• Intuitive graphical user interface with touchscreen
• Long battery life using smart Lithium ion cell.
• Connection checker with VFL, power meter, ORL and video inspection scope options.
• Built-in optical talkset option for communicating along the fiber.
• Remotely controlled (Ethernet/IP)
• Fast data transfer via USB, Ethernet port and 1GB extended memory.

This product contains

• H/W:

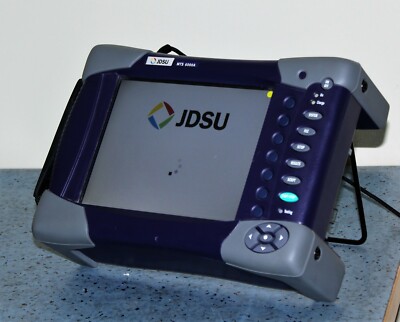

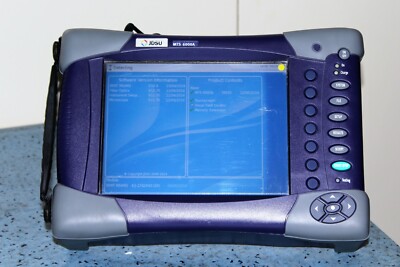

• MTS 6000A – mainframe
• Single slot / Dual port SFP/SFP+ SIM card
• Finisar Multi-rate 10G SFP+ , P/N FTLX1472M3BCL
• Power supply
• Optical mouse

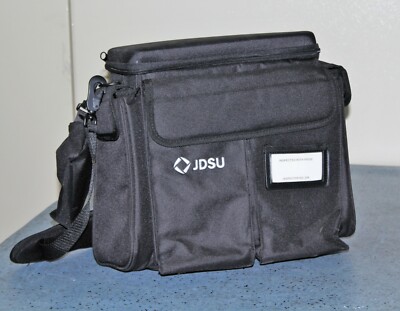

• Original bag

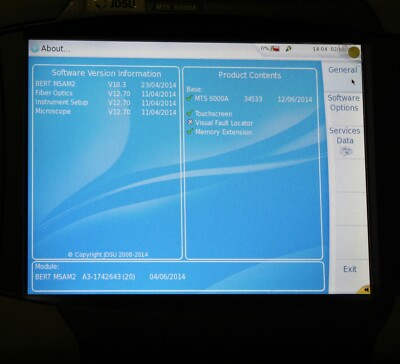

• S/W
• 8G Fiber channel testing
• OTU2 10.7G Testing
• BERT

Shipping

·       Shipment – 5 business day after receival payment is received

·       Tracking number will be mailed to your e-mail address

·       Self-pick-up welcomed

Payment

·       We accept PayPal and Wire Transfer

·       Israeli buyers – please add 17% VAT

International Buyers – Please Note

·       Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer’s responsibility.

·       Please check with your country’s customs office to determine what these additional costs will be prior to bidding or buying

Questions

·       We are at your service –  skype: peled2005
