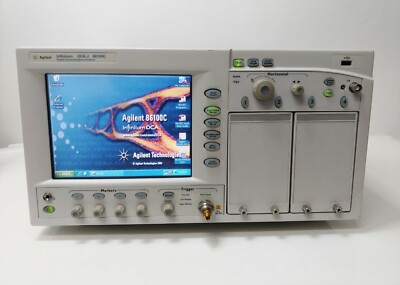

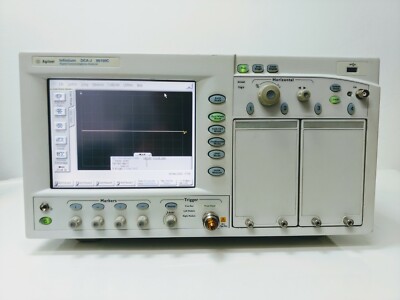

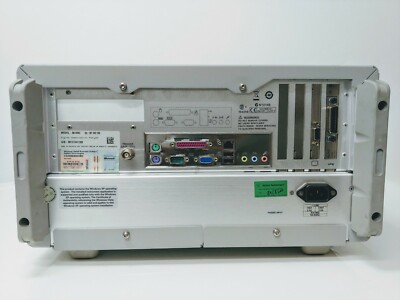

Agilent / Keysight 86100C Infiniium DCA-J Wideband Oscilloscope Mainframe

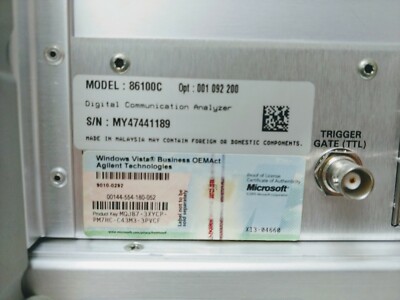

opt 001, 092 and 200
Free shipping
Main Features & Specifications:
86100C Digital Communications Analyzer modes:
- Oscilloscope with bandwidth in
excess of 80 GHz, ensuring the most accurate waveform measurements.
- Eye diagram analyzer for both
optical and electrical transmitter compliance testing to >40 Gb/s.
- Jitter and
interference analyzer, measuring subcomponent jitter.
- Time domain
reflectometry/transmission (TDR/TDT) for high precision impedance
analysis including S-parameters.
Main features
- User configurable:
mainframe with slots for two modules (4 optical or electrical
channels).
- Trigger bandwidth
up to > 13 GHz (option 001).
- Clock recovery
with adjustable loop bandwidth (see 83496B).
- Integration with
MATLAB signal filtering and measurement automation software available.

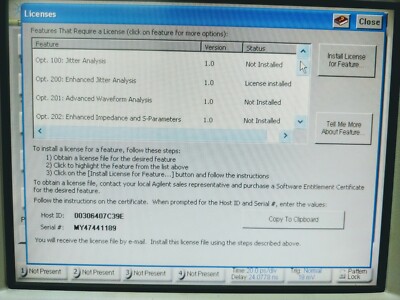

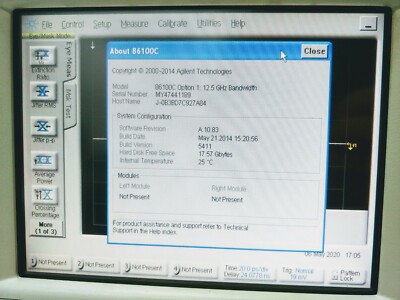

Installed Software options:
- Opt 200 – enhanced
jitter analysis
Jitter Mode provides automated
jitter decomposition into:
- Total Jitter (TJ) – user
adjustable BER probability
- Random Jitter (RJ)
- Deterministic
Jitter
(DJ) with additional decomposition into Periodic Jitter (PJ), Data
Dependent Jitter (DDJ), Duty Cycle Distortion (DCD), and
Intersymbol Interference (ISI)
- Periodic Jitter
Frequency Identification: Analysis and identification of PJ into
Sub-Rate Jitter (SRJ) and Asynchronous PJ frequency components
86100C DCA-J – Jitter Mode
Jitter Mode:
Accurate jitter analysis, including decomposition of jitter
into its constituent components, is becoming critical as data rates increase.
Decomposition provides critical insight for jitter budgeting and performance
optimization in device and systems designs. Jitter Mode decomposes jitter into
its constituent components and presents jitter data in various insightful
displays. Jitter Mode operates at all data rates the 86100C supports, removing
the traditional data rate limitations from complex jitter analysis.
With Advanced Jitter Analysis – Option 200:
·
Decomposition of jitter
into Total Jitter (TJ), Random Jitter (RJ), Deterministic Jitter (DJ), Periodic
Jitter (PJ), Data Dependent Jitter (DDJ), Duty Cycle Distortion (DCD), and
Jitter induced by Intersymbol Interference (ISI)·
Various graphical and
tabular displays of jitter data·
Export of jitter data
to convenient delimited text format·
Save/Recall of jitter
database·
Jitter frequency
spectrum·
Isolation and analysis
of Sub-Rate Jitter (SRJ), that is, periodic jitter that is at an integer
sub-rate of the bitrate·
Bathtub curve display·
TJ Estimate vs Actual
TJ·
Adjustable total jitter
probability
Applications
· Fibre Channel· PCI Express· FBD· SATA· SAS· Infiniband· IEEE 802.3ae· Increase your knowledge in all things ‘Jitter’! Be a Jitter
Master!· TJ Error· Very low intrinsic jitter (both random and deterministic)
translates to a very low jitter noise floor which provides unmatched jitter
measurement sensitivity· Wide-bandwidth measurement channels deliver very low
intrinsic data dependent jitter and allow analysis of jitter on all data rates
to 40 Gb/s and beyond· Pattern Lock triggering technology provides sampling
efficiency that make jitter measurements very fast
Advanced Jitter Analysis· Decomposition of jitter into Total Jitter (TJ), Random Jitter
(RJ), Deterministic Jitter (DJ), Periodic Jitter (PJ), Data Dependent Jitter
(DDJ), Duty Cycle Distortion (DCD), and Jitter induced by Intersymbol
Interference (ISI)
Jitter frequency spectrum· Isolation and analysis of Sub-Rate Jitter (SRJ), that is,
periodic jitter that is at an integer sub-rate of the bitrate· Jitter spectrum/phase noise for both clock or data signals
(requires 83496B Clock Recovery)· Decomposition of interference into Total Interference (TI),
Random Noise (RN), Deterministic Interference, Periodic Interference (PI), and
Inter-symbol Interference (ISI)
