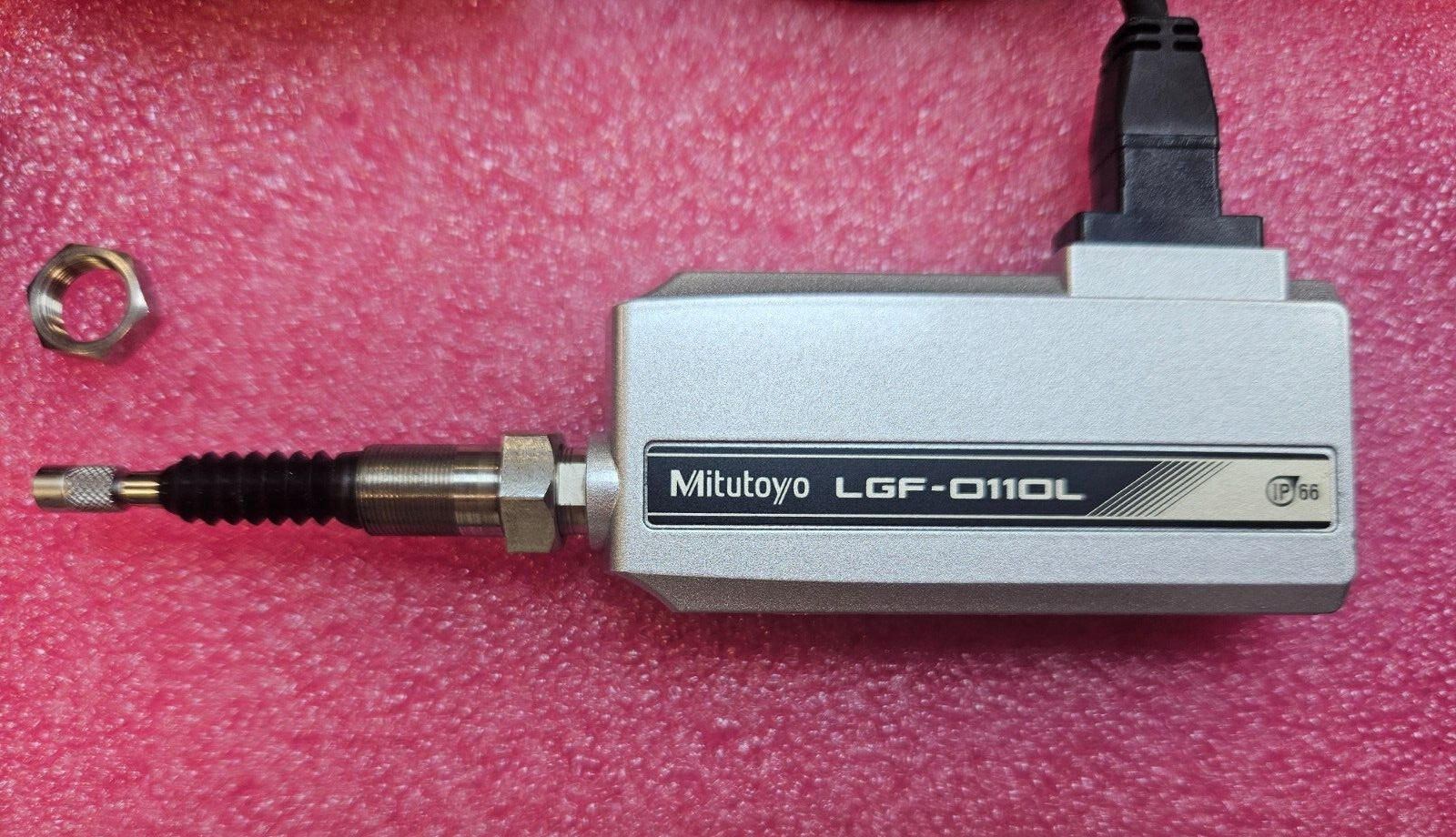

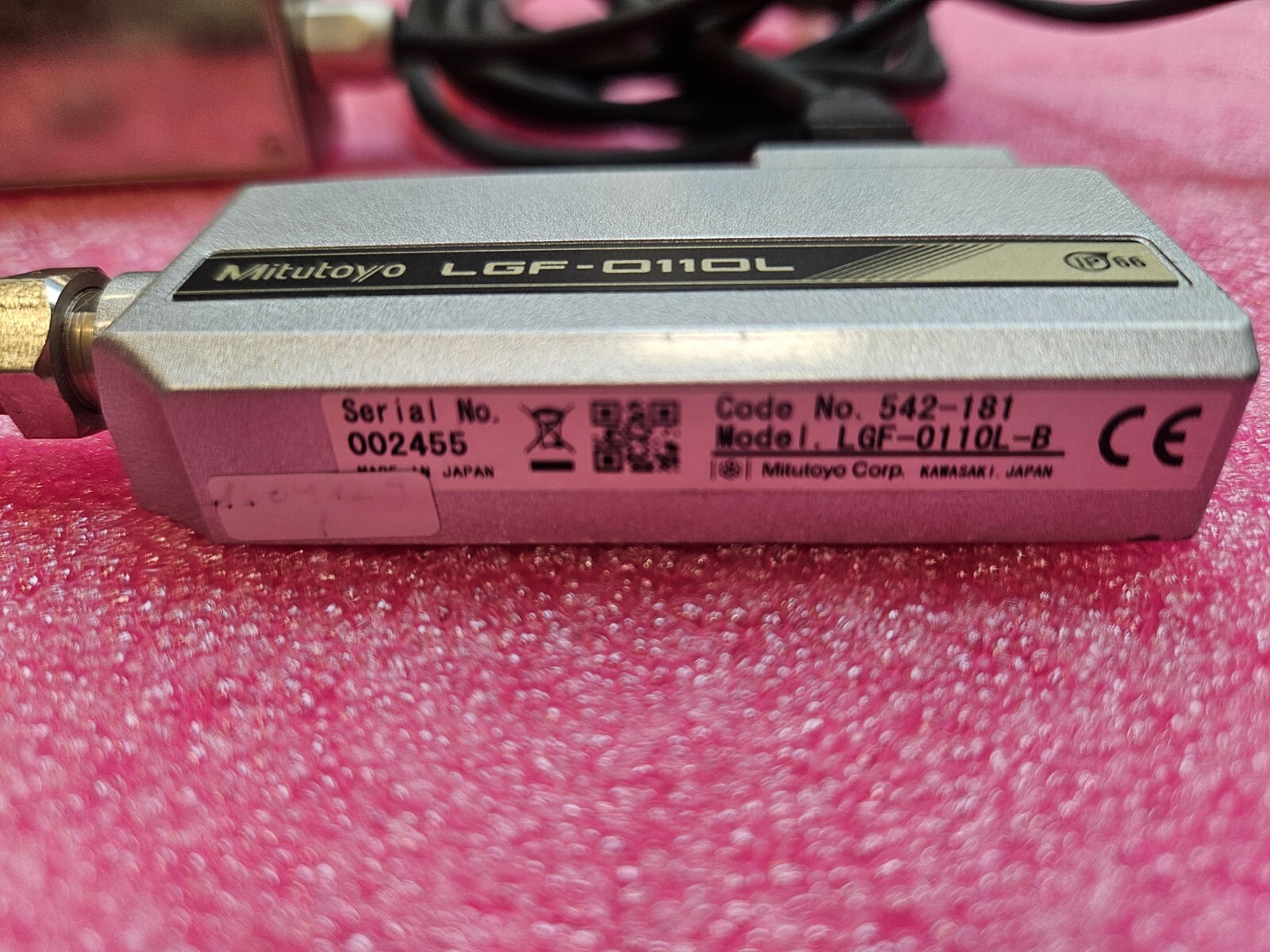

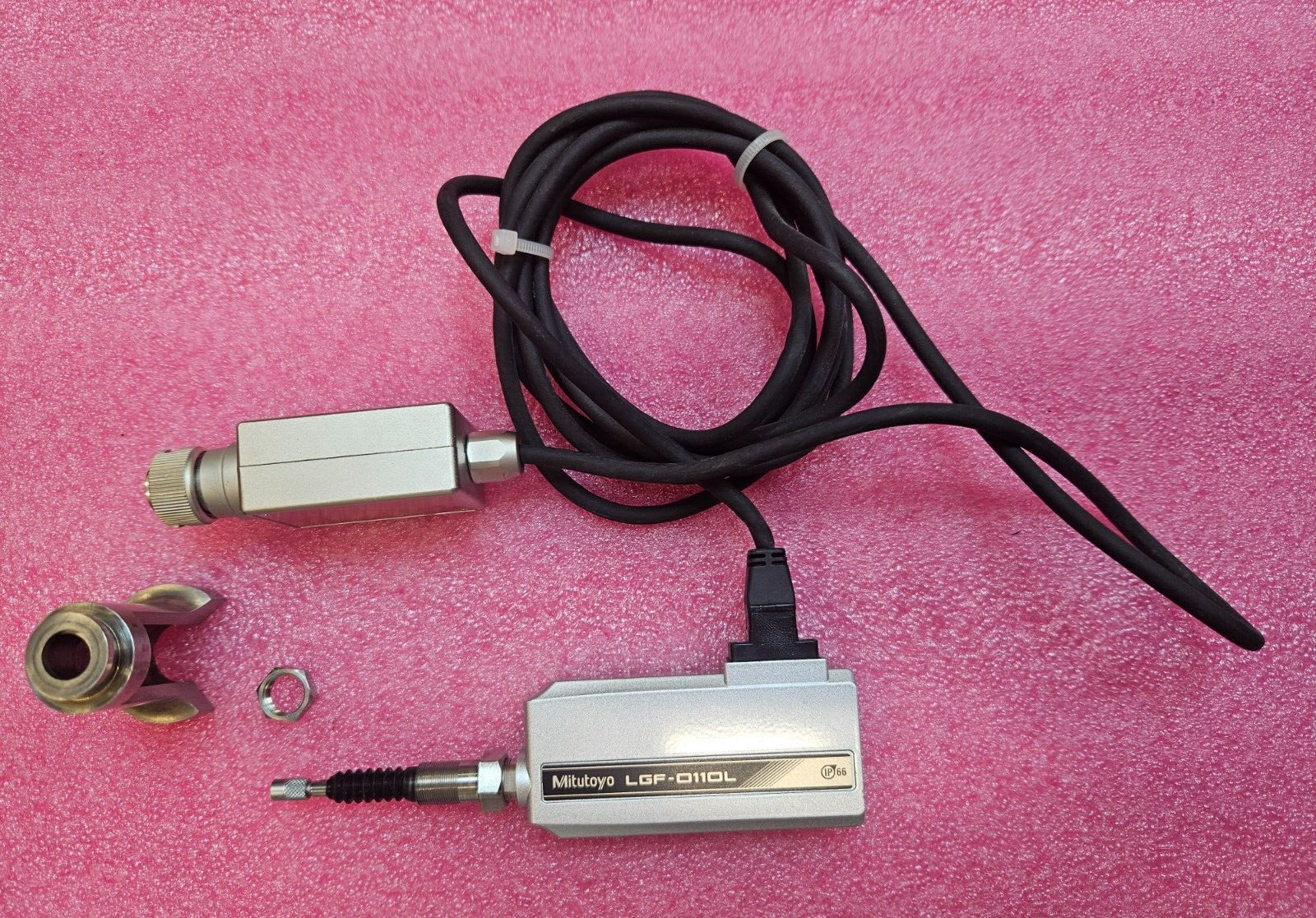

Mitutoyo 542-181 LGF-0110L-B Mitutoyo 542-181 LGF-0110L-B

Mitutoyo 542-181 LGF-0110L-B

To be completely satisfied with the products you bid on, so please find the details below:

Description

This is very robust and economical linear gauge that offers you the following
benefits:

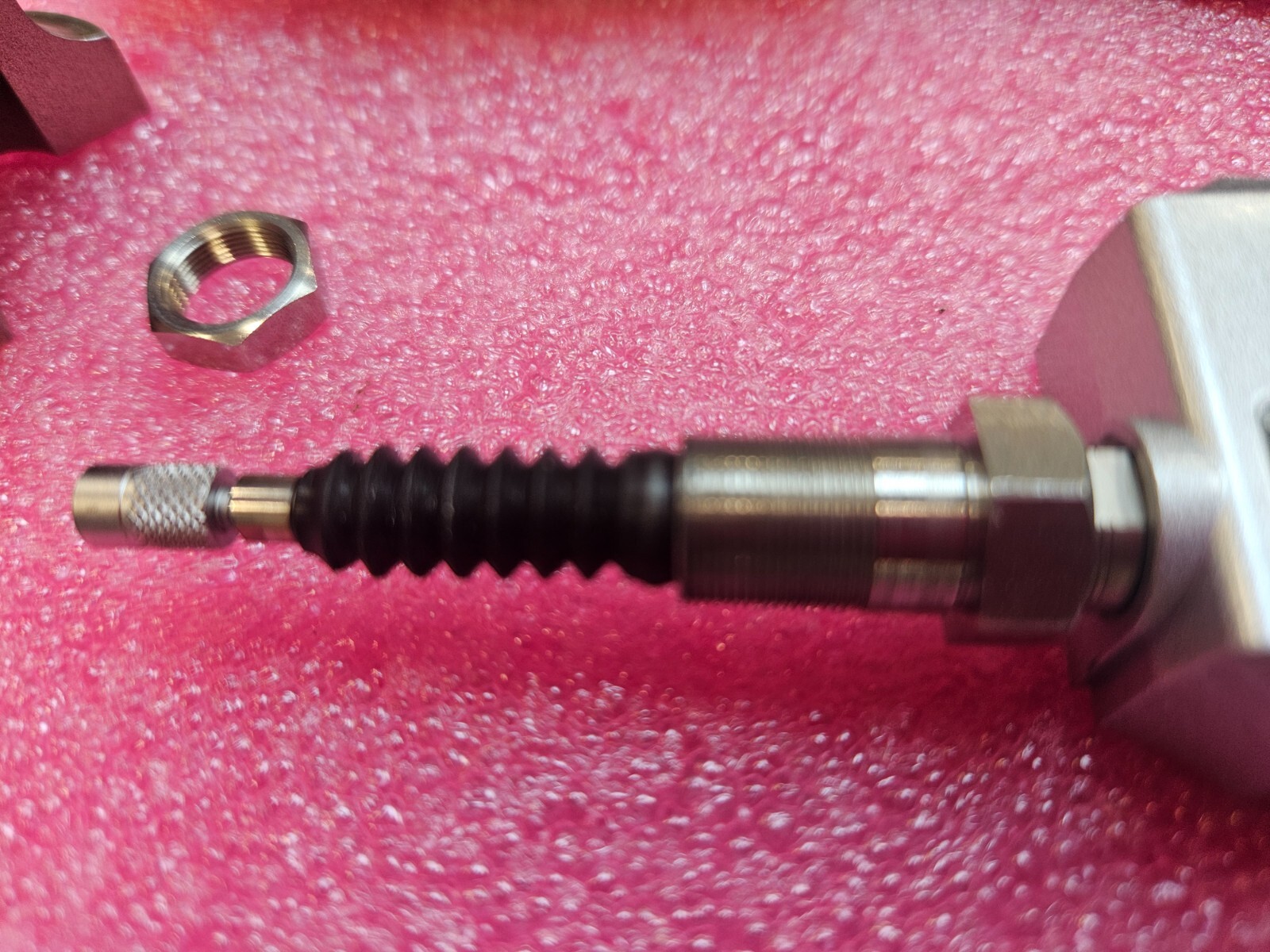

• The advanced construction of the plunger guidance assembly makes it very
  resistant to external shocks and vibration.
• Its differential square-wave signal output allows you to use it for a wide range of applications.
• It is very long lasting due to linear ball-bearings in the spindle unit.

Properties

Resolution:0.0001Accuracy:(0,8 + L/50) µm L=measured length in mmMeasuring force:1.2N with spindle down, 1.1N spindle horizontal, 1N spindle upwardsScale:Photoelectric linear encoderStem Ø:8 mmMax. response speed:400 mm/s mm/sContact point:Ø3 mm carbide
(mounting threads M2.5 x 0.45)Signal pitch:0.4 µmCable length:2 mPower consumption:Max. 120 mAPower supply:+ 5 V (4.8 V to 5.2 V), voltage 200 mV p-p max.Max. response speed:UnlimitedOutput signal:90° phase difference, differential square wave
(RS-422A equivalent),
edge distance 200 ns for 1 µm model, 250 ns for 0.5 µm modelEnvironmental conditions:0 °C to 40 °C (20 % to 80 % rel. humidity, no condensation) °CBearing type:Linear ball bearingLocation: M3browntaub
