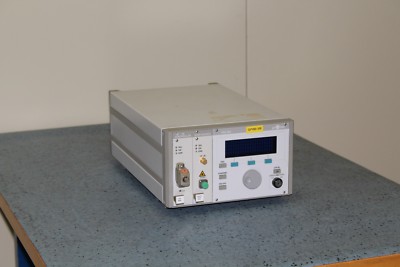

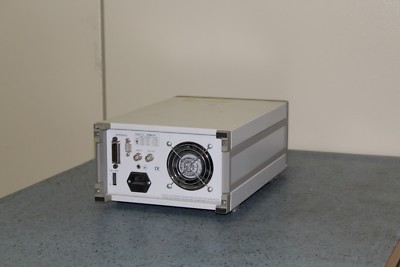

Thorlabs PRO 800 is a 2 slot Laser Source Maineframe LD Controller

Thorlabs Profile PRO-800 Laser Source Maineframe LD Controller TE Controller

PRO800 – 2-Slot Modular Benchtop Chassis, 8 A Total Output Current

·       Modular Platform for Laser Diode Testing and Operation

·       Locally Operated Using Built-In Front Panel

·       Fast IEEE-488 and RS232 Interfaces for Remote Control

The PRO800 Chassis is perfect for the lab environment and can accommodate up to two modules. This made-to-order chassis can be custom configured with up to two modules that best meet individual experimental needs prior to purchase (see image at right). The chassis can also be ordered empty, without any pre-installed modules. The empty slots of the PRO800 are covered using the PRO8000-C front cover plate (see image to the left) for protection during transportation and delivery. Extra front cover plates are sold below.

Pro 800 chassis – Key Specifications:

PRO800 Chassis with ITC8022 LD and TEC Controller and PDA8000-2 Amplifier

Number of Slots: 2

Max Power Consumption: 220 VA

Max Output Current Per Slot: 4A

Max Output Current for All Slots: 8A

Compact, 2-Slot, Benchtop Chassis

Ideal for Research Applications

Compatible with Various Temperature and Current Controllers and Optical Switches

Dimensions (W x H x D): 232 mm x 147 mm x 396 mm (3 U Height)

WDM source – Key Specifications:

·       Complete Coverage of ITU Grid

·       Wavelength Stability Better than 2 pm/24 h

·       Output Power Stability Better than 0.01 dB/24 h

Features

·       Center Wavelengths on 100 GHz ITU Grid

·       Wavelengths in C, and L Bands

·       Output Power: 20 mW

·       Wavelength Stability:< 2 pm / 24 hrs

·       Extremely Stable Output Power < 0.01dB / 24 hrs

·       Precise Wavelength Tuning: over ± 0.85 nm

·       Direct Display of Wavelength During Tuning

·       Precise Power Attenuation: over 6 dB, typ. 10 dB

·       Variable Coherence Control, Linewidths Adjustable up to 1 GHz

·       Instrument Drivers for LabVIEW™ & LabWindows/CVI™

·       FC/APC Connector

PRO8 Laser Diode Temperature Controller Modules – key features

·       3 Current / Power Ranges

·       Excellent Temperature Stabilization

·       Easy-to-Access PID Adjustments

Features

·       Temperature Control Range: -12.375 to 90.000 °C (Semiconductor Sensor)

·       Temperature Control Range: 5 Ω to 20 kΩ and 50 Ω to 200 kΩ (Thermistor in 2 Ranges)

·       Temperature Stability: <0.002 °C

·       TEC Current Ranges: ±2 A and 16 W, ±4 A and 32 W, ±8 A and 64 W

·       Supports Thermistors: AD590, AD592, and LM335

·       Optional Sensors (Pt 100, Pt 1000 – Replaces AD590/AD592/LM335 Sensors) Upon Request

·       Adjustable P, I and D Settings
